DIAF DISSOLVER CX

The Diaf Dissolver CX is a high performance dissolver that ranges in sizes from laboratory to industrial scale production.
  • Overview
  • Designed for Ease of Use
  • Performance
Spanning a versatile range of 20 to 5,000 liters in mixing capacity (with a substantial gross volume up to 6,000 liters), our Dissolver Series exemplifies the pinnacle of high shear mixing technology. Each mixer in this series comes equipped with either a uniquely designed disc (a plate turbine precisely mounted on a vertical shaft), or our groundbreaking Rotosolver high shear mixing head, engineered to deliver unparalleled shear and pumping rates. We pride ourselves on offering a comprehensive array of customization options, meticulously tailored to fulfill your distinct mixing requirements with precision and innovation.

Designed for Ease of Use

Our Dissolver Series is expertly designed with an integrated electrohydraulic unit for seamless lifting and lowering, embedding compactness into its very architecture for effortless integration into diverse plant layouts. This intuitive design ensures the machines are straightforward to operate, eliminating the need for specialized training. For those seeking enhanced control and efficiency, we offer the option to equip the Dissolver with a Programmable Logic Controller (PLC) and recipe preprogramming capabilities, further streamlining your operation with its user-friendly interface.

Performance

The Dissolver stands out for its rapid and exceptional dispersion capabilities across all stages of the mixing process, setting a new standard for efficiency that leads to shorter batch times and an elevated total production output. Available in both fully enclosed models with fan-cooled motors and explosion-proof variants, each Dissolver model is crafted to meet the highest safety and performance standards, ensuring peace of mind and reliability in every operation.

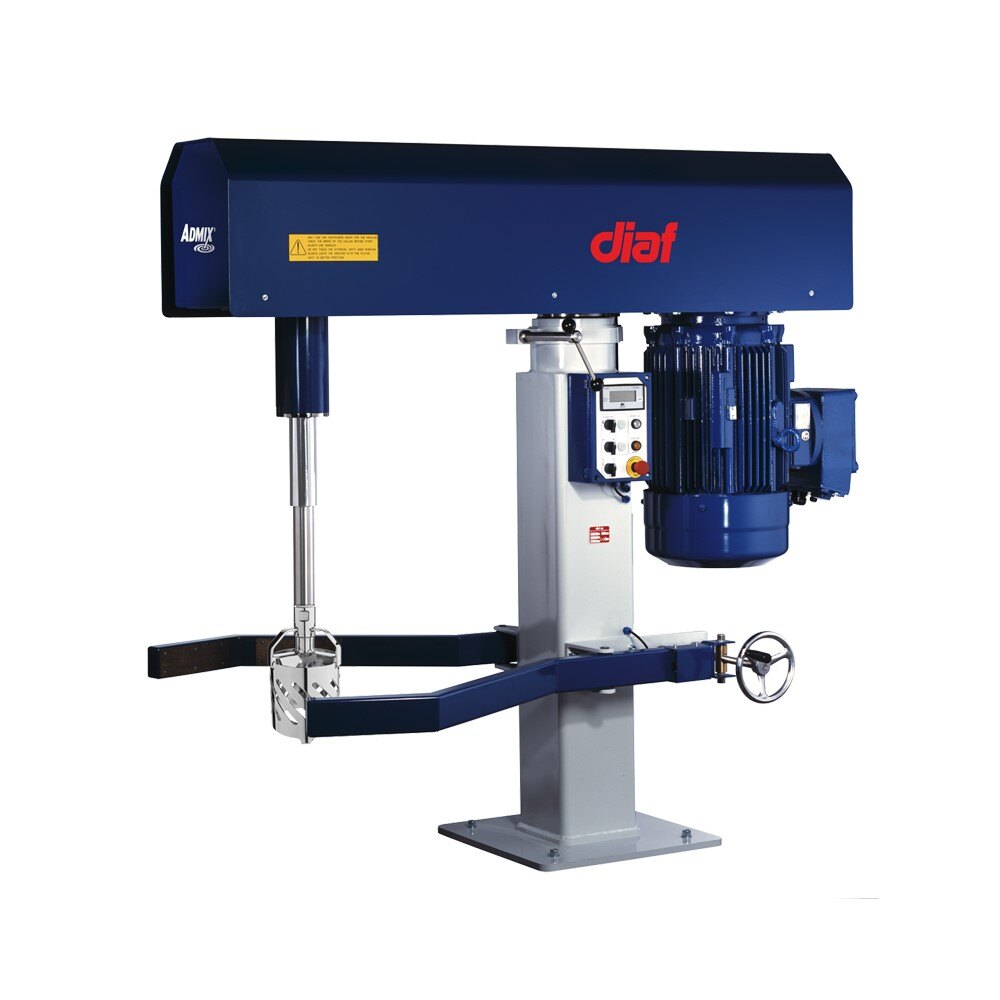

Diaf-Dissolver-1200ZH-RS
Diaf Dissolver CX

Model Specifications

Scroll to the right if needed to view all information.

Model
Batch capacity
RPM
MOTOR POWER KW
STANDARD
EXPLOSION PROOF
20VH
15
550-3500
1.35
100WH
100
550-3500
3 and 4
400XH
400
550-3500
11 and 15
1200ZH
1200
550-3500
18.5 – 45
2000ZH
2000
550-3500
55
3500ZS / ZG
3000
550-3500
55-132
6000ZS / ZG
5000
550-3500
90-160
Additional Customized Solutions

Diaf Dissolver CX Options

GENERAL

  • Excellent dispersion, pre-mixing and ready mixing at low energy consumption
  • Manufactured and assembled to the highest quality standards
  • Tank gross volume up to 6,000 liters
  • Hydraulic powered lift for lifting and lowering with built-in safety switch
  • Optional dual shaft with scraper for higher viscosity products
  • Rotation speed control via VFD
  • A range of motor sizes are available to fit your application
  • Safety container fastening device
  • EX-proof and non EX-proof motors available
  • IP54 fan-cooled enclosure available
  • CE/ATEX marked in conformity with Machinery, Low Voltage, and EMC directives

ADDITIONAL

  • PLC control
  • 20VH, 100WH, 1200ZH, and 2000ZH models can be configured for vacuum operation
  • Stainless-steel lid
