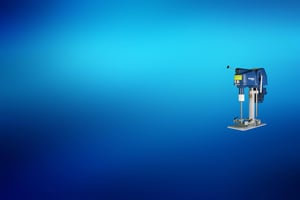

DIAF MINIBATCH CX

The Diaf Minibatch CX is a benchtop disperser is ideal for premixing, dispersion and finishing small batches.

OVERVIEW

The Diaf Minibatch CX benchtop disperser stands at the forefront of efficiently handling premixing, dispersion, and the final touches on batches as large as 4 gallons / 15 liters (approximate batch content). This device is a testament to our commitment to innovation, reliability, and support, crafted to meet the demanding needs of Research and Development or small scale production with unmatched quality.

We take immense pride in presenting our esteemed clients with the Diaf Minibatch CX, a cutting-edge solution tailored for the demanding environments of industrial Research and Development and small batch production. Our commitment to pioneering innovation, reliability, and support shines through in the Minibatch, meticulously engineered from premium materials to ensure unparalleled durability and performance. This commitment reflects our dedication to empowering your operations with the most dependable dispersing solution on the market.

Minibatch-20A
Diaf Minibatch CX

Model Specifications

Scroll to the right if needed to view all information.

Model
Batch capacity
RPM
Motor Power
2 HP
3 HP
RPM Speed
550 – 3500
1100 – 6800
Net Weight
250 lbs
250 lbs
Lifting Height
13.8 in. / 35 cm
13.8 in. / 35 cm
Standard Dispersion Disc Size
75 mm
100 mm
Optional Extra Discs
40 mm and up
40 mm and up
Additional Customized Solutions

Diaf Minibatch CX Options

OPTIONS

  • Optional vacuum container up to approximately 4 gallons
  • Vacuum chamber for insertion of cans
  • Detachable dissolver shafts in stainless steel, equipped with threaded coupling and protection jacket in Teflon, i.e. shafts will be equipped with dispersion discs or other high shear mixing head in stainless steel at your option
  • Manually operated motor safeguard with undervoltage release, also available in EEx e II T3 execution

MIXING HEADS

  • A wide range of high shear sawtooth dispersion discs
  • Admix Rotosolver® high shear disperser for maximum shear and pumping rates
  • Flow propellers
  • Butterfly
