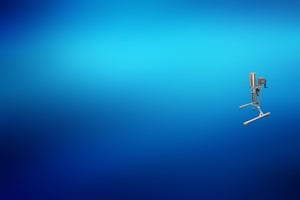

RS-02 & XP-02

Our Pilot Scale Mixers™ are an excellent solution for product development, formula optimization, trial mixtures, and small production runs.

OVERVIEW

DIVERSE USE
  • Suitable for every industry
  • Optimal shear and flow patterns
  • Low power consumption
  • Scale-up
EASY TO USE/INSTALL
  • Large, easy-to-turn hand crank for adjusting mixer height
  • Simple installation – use immediately!
  • Fits through standard doorways
STABLE
  • Sturdy and mobile lift stand
  • Wide base for added stability
equipment-RS02

ELIGABLE FOR OUR QUICK SHIP PROGRAM

Need it quick? Quick Ship models ship within a few days!

How it Works

Introducing the RS-02, equipped with our award-winning, patented Rotosolver® high shear mixing head. This marvel of engineering stands as the pinnacle of high shear impeller technology, unmatched in its ability to swiftly and efficiently disperse powders. Crafted with precision to achieve a superior balance of shear and flow, the Rotosolver ensures that your product reaches a state of flawless homogeneity, emulsification, and is free of agglomerates in less than 10 minutes.

Powders, even when dumped in all at once, are immediately drawn down into the mixing head and up from the bottom, passing through multiple shear surfaces before centrifugal pressure forces material to the periphery. This combination of high shear, converging forces and continual flow means there are no dead zones in the tank and mixing is completed faster. Because of the highly efficient flow pattern created by a unique head design, minimal horsepower energy is needed to run the mixer and very little heat is generated so the temperature of your mixture remains steady.

In addition, because no unmixed product is left behind, product loss concerns are a non-issue. With the Rotosolver, your ingredients will be perfectly mixed with functional ingredients intact and emulsions stable.

For those endeavors requiring a refined approach to diminishing the size of specific ingredients like fruit pieces, candy bits, or nuts, the XP-02 Pilot Scale Mixer emerges as the quintessential choice. Engineered with our exclusive Rotostat® rotor-stator impeller and an optional secondary propeller, the XP-02 stands at the forefront of precision and efficiency, ensuring your materials are processed to perfection.

Model Specifications

Scroll to the right if needed to view all information.
Batch Capacity
5-20 gallons / 19-76 liters
5-20 gallons / 19 -20 liters
Scalable
Shear Head Diameter
2.36 in. / 60 mm
2.48 in / 63 mm
Second Impeller
3 in. / 76 mm upper propeller optional
3 in. / 76 mm lower propeller optional
Tank / Bucket
Nalgene available (10 gallon. / 37-liter bucket)
Nalgene available (10 gallon / 37-liter bucket)
Shaft Diameter
1 in. and 1.25 in. / 25mm and 32mm
1 in. and 1.25 in. / 25mm and 32 mm
Tank Safety Cover
Lift Stand on Casters
Motor Size
1.5 HP / 1.1 kw
1.5 HP / 1.1 kw
Output Speed (RPM)
3450
3450
Motor Type Options
Stainless Steel (included). High efficiency TEFC or TEXP. White Washdown Duty
Stainless Steel (included). High efficiency TEFC or TEXP. White Washdown Duty
VFD Motor Controller
Optional, recommended
Optional, recommended
Input Voltage
1/60/115-230 or 3/60/230-460
1/60/115-230 or 3/60/230-460
Full Load Amps
230v: 3.7 amps, 460v: 1.8 amps
230v: 3.7 amps, 460v: 1.8 amps

TRY BEFORE YOU BUY

Our trial program offers a hands-on opportunity to test our state-of-the-art equipment, ensuring it meets your standards for quality and performance. Take advantage of this risk-free option to see firsthand how our solutions can benefit your business operations.

Additional Customized Solutions

Pilot Scale Mixer Options

  • Mixing head: 60mm Rotosolver or 64mm
  • Rotostat
  • Second impeller / foil
  • Nalgene bucket (10 gallon / 37-liter)
  • Motor type:
    • Stainless Steel
    • TEFC or TEXP
    • White Washdown Duty
  • VFD motor controller
