FASTFEED

The Admix Fastfeed® powder induction and dispersion system consistently delivers perfect product across any batch size.

OVERVIEW

EFFICIENT
  • Cut batch times in half
  • Improve operator safety & ergonomics
  • Reduce energy consumption up to 70%
3-A COMPLIANT
  • Meets 3-A sanitary standard #73-01 and USDA-AMS standards
  • All contact surfaces are 316L with welds blended & polished
OPTIONS
  • PLC Automation controls
Fastfeed Powder Induction System

HOW IT WORKS

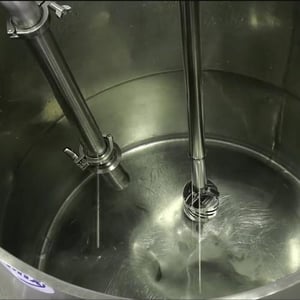

FastfeedThe Fastfeed system inducts, wets, and disperses countless ingredients, instantly eliminating fisheyes. Proteins, gums, starches, vitamins, fiber, sweeteners, stabilizers, emulsifiers, flavors, and colors are dispersed at rates up to 500 pounds per minute in a single pass.

The two-stage rotor/stator Dynashear high speed emulsifier immediately wets and disperses powders at the particulate level in a single pass.

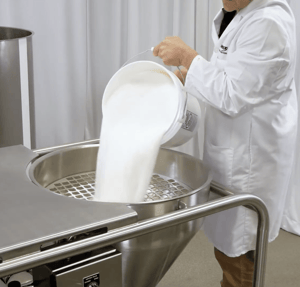

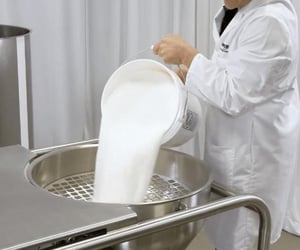

The Fastfeed can make any size batch and typically in half the time because powders are inducted into the liquid stream while the batch tank is being filled. Operators add all powdered and liquid ingredients from the safety of floor level.

All powders are dispersed directly into the blend tank, so there are no time-consuming pre-blends or “side batches” that require processors to fill, add powder, mix, transfer, and repeat.

In addition, our Fastfeed for meat and poultry processors provides inline simultaneous powder induction (up to 160 lbs/minute) and dispersion for any size batch.

_DSC0448

TEST YOUR FORMULAS IN OUR LAB

See the difference precision makes!

Fastfeed

Sizing & Engineering Data

Scroll to the right if needed to view all information.
FF-425
FF-575
Pump HP/kW
7.5 HP/5,5 kW @ 1800 RPM
15 HP/11,5 kW @ 1800 RPM
Mixer HP/kW
7.5 HP/4 kW @ 3600 RPM
20 HP/15 kW @ 3600 RPM
Hopper
3.4 cubic ft
3.4 cubic ft
Skid Fittings
2 in. / 5 cm Ø inlet (2.5 in. / 6.35 cm optional) 2 in. / 5 cm Ø outlet
2.5 in. / 6.35 cm Ø inlet (3 in. / 7.62 cm optional) 3″Ø outlet
Dimensions (LxWxH)
60x33x37 in. / 1524x838x940 mm
71x45x38 in. / 1803x1143x965 mm

TRY BEFORE YOU BUY

Our trial program offers a hands-on opportunity to test our state-of-the-art equipment, ensuring it meets your standards for quality and performance. Take advantage of this risk-free option to see firsthand how our solutions can benefit your business operations.

Additional Customized Solutions

Fastfeed Features

STANDARD

  • Powder hopper with vibrator
  • Dynashear high shear inlline mixer
  • Control panel for suction pump and Dynashear
  • Ergonmic table
  • Casters
  • Powder suction pump
  • Regulating valves
  • Vacuum gauge

OPTIONAL

  • All contact surfaces are 316L with welds blended & polished
  • Control panel
  • PLC Automation
  • Optional side flush loop
  • Optional double mechanical seal for sticky, abrasive or high solids applications
  • Optional wand attachment
  • 2.5 in. / 6.35 cm  inlet on the FF-425 model
  • 3.0 in. / 7.62 cm  inlet on the FF-575 model
_DSC0536
