BOSTON SHEARMILL
OVERVIEW
- Designed to run 24/7
- Particle size reduction
- Disperse, emulsify, pulverize, macerate, crush, homogenize
- Meets 3-A sanitary standard #73-01 and USDA-AMS standards
- All stainless mix head, shaft, drive, and motor available
- Wide ranges in capacity, power consumption and tip speed
- 3 heads + 3 shear levels for a total of up to 9 shear zones in a single pass
- CIP with no crevices, deadlegs, or open threads
- Reduce solids particles with minimal dust formation
- Low maintenance design
How It Works

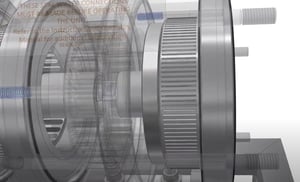

Boston Shearmills are constructed of a multi-slot rotor turning at high speeds in close proximity to a multi-port stator. Each shear head of the homogenizer consists of a rotor and stator, each with a double ring design. This results in three distinct, high intensity work zones at each rotor / stator location where the mixture passes:
• between the first set of rotor slots or teeth and the first ring of slots on the stator
• between the first ring of slots on the stator and the second ring of slots in the rotor
• between the second ring of slots in both the rotor and stator
Models with three shear heads provide nine high shear work zones to handle your toughest processing needs.
They are capable of processing very high throughputs at extreme shear rates producing an average mean droplet size of 1-3 microns.
![BSM-rotor-stators-collection-LR BSM-rotor-stators-collection-LR](https://admix.com/hubfs/images/hygienic/BSM-rotor-stators-collection-LR.png)
ELIGABLE FOR OUR QUICK SHIP PROGRAM
Need it quick? Quick Ship models ship within a few days!
Model Specifications
Scroll to the right if needed to view all information.
The BSM series provides a wide range in capacity, power consumption and tip speed.
Models available for processing 5-165 gallons / 18-625 liters per minute.
*Motor HP/kW may be able to be downgraded depending on the application and shear head combination.
TRY BEFORE YOU BUY
Our trial program offers a hands-on opportunity to test our state-of-the-art equipment, ensuring it meets your standards for quality and performance. Take advantage of this risk-free option to see firsthand how our solutions can benefit your business operations.
BSM Options
MODELS
- BSM 25-3 (up to 3 shear heads)
- BSM 37-3 (up to 3 shear heads)
- BSM 60-1 (1 shear head)
- BSM 60-3 (up to 3 shear heads)
ROTOR / STATOR
- U – Ultra Fine
- V – Very Fine
- E – Fine
- D – Medium
- C – Coarse
- G – Chopper (60-1, 60-3 models)
- R – Ripper (25-3, 37-3 models)
MOTORS
- Stainless Steel Washdown Duty
- White Epoxy Washdown Duty
- Stainless Steel Pharm Duty
- Painted, IP55
- Painted, Non Washdown
- TEXP Explosion Proof
- IEEE 841 Severe Duty, IP56, white epoxy
MORE
- Many options available for Materials and Finish, Seals, VFDs, Wetted Parts
