ROTOMAXX II CX

Discover the Rotomaxx™ II CX: the ultimate right-angle agitator combining low-shear precision with high-torque capability, ideal for enhancing efficiency in large-scale operations without sacrificing performance.

OVERVIEW

The Rotomaxx II CX stands alone as the market's exclusive all-stainless steel, low-speed, high-capacity agitator, engineered with a low-shear, high-torque design and a right angle configuration for optimal performance.

Specially crafted to meet the expansive needs of the pharmaceutical, cosmetics, and food sectors, this durable agitator features a meticulously designed right angle helical bevel gearbox. It thrives in the most intense operational conditions, seamlessly adhering to rigorous CIP, washdown, pressure washing, and steam cleaning standards essential for maintaining the highest levels of cleanliness and efficiency.

Key Features:

  • Tank volumes up to 60,000+ gallons
  • Total washdown capability with 3-A TPV #73-01 compliance
  • Impeller shaft available up to 144″
  • Maintenance free, greased-for-life, sealed bearings in the bearing frame
  • Up to 15 horsepower input
  • Motors are 300 series stainless steel
  • Flex couplings between motor/gearbox and gearbox/drive shaft provide vibration damping and shock load protection to drive components
Rotomaxx II CX Low Shear Low Speed Agitator

HOW IT WORKS

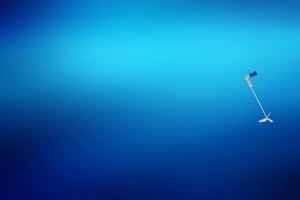

rotomaxx-ii-cx-low-shear-agitator-chemicalThe principle of operation for the Rotomaxx II CX is similar to the Rotomixx CX portable mixer and other top-entry agitators whereby a motor provides power to drive a shaft, and a bearing frame provides support for the motor, coupling and shaft. At the end of the shaft there is a device for pumping fluid, typically an impeller consisting of 3 blades attached to a central hub. The combination of the speed of the shaft rotation and the orientation and type of blades pump the fluid or liquid into which the impeller is immersed.

Built for durability, the modular design allows for multiple shaft diameter, gear ratio, and motor horsepower combinations with flex couplings between the motor/gearbox and gearbox/drive shaft to protect the gear drive from shock loads and dampen vibrations while isolating shaft bending moment and deflection loads from the torque loads on the gearbox.

The mixing impeller is the heart of the Rotomaxx II CX agitator and its high flow and rapid mix times. Standard Rotomaxx II CX units use our Jetfoil™ impeller, providing superior axial pumping rates with minimal power usage.

As a rule of thumb, the Jetfoil provides 200% greater pumping rate over conventional axial blade impellers.

Rotomaxx II CX

Model Specifications

Scroll to the right if needed to view all information.

Configurations
420 RMAX
620 RMAX
625 RMAX
Output Speed
13 – 311
12 – 240
12 – 240
HP / Kw Range
1 – 7.5 hp / .75 – 5.6 Kw
1 – 10 hp / .75 – 7.46 Kw
1 – 15 hp / .75 – 11.19 Kw
Shaft Diameter (in. / mm)
2 in. / 51mm
2 in. / 51mm
2.5 in. / 64 mm
Max. Shaft Length (in. / mm)
up to 130 in. / 3302mm
up to 130 in. / 3302mm
up to 144 in./ 3658mm
Foil Diameter (in. / mm)
up to 50 in. / 1270mm
up to 65 in. / 1651mm
up to 80 in. / 2032mm
Pumping Rate @ 1 cps (gpm/lpm)
up to 24,000 gpm / 90,850 lpm
up to 40,000 gpm / 151416 lpm
up to 56,000 gpm / 211983 lpm
Additional Customized Solutions

Rotomaxx II CX Options

SEALS

  • CIP or vacuum lip seals
  • Single mechanical dry running seals
  • Double mechanical liquid-barrier seals

MOTORS

  • 3/60/230/460 Volts (std.) or 575 Volts
  • White Washdown-duty
  • 304SS Washdown-duty
    (also available in 1/60/115 VAC up to 1.5 HP)
  • TEXP

MORE

  • Variable speed drives
