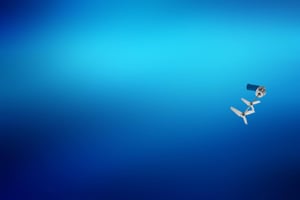

ROTOMAXX CX

The Rotomaxx CX is a low-speed right angle mixer designed to meet your requirements for high flow rate and high torque.

OVERVIEW

EFFICIENT
  • Low Speed
  • High Flow Rate
  • High Torque
OPTIONS
  • Various mounting plates, explosion proof packages, inverters, mechanical seals available
Rotomaxx CX High Torque Mixer

HOW IT WORKS

Admix-box-RMAX-CXThe principle of operation for the Rotomaxx CX high torque mixer is similar to Admix’s Rotomixx CX portable agitator and other top-entry agitators whereby a motor provides power to drive a shaft, and a bearing frame provides support for the motor, coupling and shaft. At the end of the shaft there is a device for pumping fluid, typically an impeller consisting of 3 blades attached to a central hub. The combination of the speed of the shaft rotation and the orientation and type of blades pump the fluid or liquid into which the impeller is immersed.

The mixing impeller is the heart of the Rotomaxx CX mixer and its success in promoting high flow and rapid mix times. Standard Rotomaxx CX units use our Jetfoil™ impeller, providing superior axial pumping rates with minimal power usage. Custom impellers are available to suit specific applications.

As a rule of thumb, the Jetfoil provides TWICE the flow rate and tank turnovers at a given horsepower as compared to conventional pitched blade agitators.

Rotomaxx CX

Model Specifications

Scroll to the right if needed to view all information.
125 RMAX
150 RMAX
200 RMAX
Output Speed
30 - 350 RPM
30 - 350 RPM
30 - 350 RPM
Power Range
.5 – 2 HP / .37 – 1.49 Kw
0.5 – 3 HP / .37 – 2.24 Kw
0.75 – 3 HP / .56 – 2.24 Kw
Shaft Diameter
1.25 in. / 32mm
1.5 in. / 127mm
2 in. / 51mm
Max. Shaft Length
up to 95 in. / 2413mm
up to 106 in. / 2692mm
up to 165 in. / 4191mm
Pumping Rate @ 1 CPS
up to 13,000 gpm / 49210 lpm
up to 20,500 gpm / 49210 lpm
up to 23,800 gpm / 90093 lpm
Additional Customized Solutions

Rotomaxx CX Options

MOTORS

  • 3/60/230/460 volts (std.) or 575 volts
  • White washdown-duty
  • 304 SS washdown-duty
  • 304 SS pharmaceutical grade (also available in 1/60/115 VAC up to 1.5 HP)
  • TEXP

SEALS

  • CIP or vacuum lip seals
  • Single mechanical dry running seals
  • Double mechanical liquid-barrier seals

MOUNTING

  • ANSI flanges

MORE

  • Variable speed drives
_DSC0536
